G200 3.9688mm-8.5mm bearing chrome steel balls for bearing solid sphere

FOB Reference Price:Get Latest Price
$0.05 - $0.10 / Piece | 10000 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 10000 10001 - 50000 >50000
Est. Time(days) 1 3 Negotiable
Customization:
Customized logo (Min. Order: 1000000 Pieces)
Customized packaging (Min. Order: 1000000 Pieces)

More

Graphic customization (Min. Order: 1000000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Machinery Repair Shops, hardware accessories
Place of Origin:
Shandong, China
Brand Name:
Condar
Model Number:
Steel Ball
Material:
Chrome Steel Balls, Chrome steel
Name:
G200 3.9688mm 3.969mm 5/32 inch bearing steel ball
Grade:
G200
Certifications:
SGS
Size:
3.9688mm-8.5mm
Standard:
GB,AISI,JIS
Feature:
Strong Rust Resistance
Quality:
High Standard
Package:
Plastic Bag + Cardboard Box + Wooden
Product name:
3.9688mm-8.5mm bearing chrome steel balls for bearing solid sphere
Supply Ability
Supply Ability:
500000 Piece/Pieces per Month G200 3.9688mm 3.969mm 5/32 inch bearing steel ball for bearing s
Packaging & Delivery
Packaging Details
20kg/carton packaging
woven bags;
carton+pallet;
Port
Qingdao,Tianjin ,Shanghai,Ningbo Port
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 10000 10001 - 50000 >50000
Est. Time(days) 1 3 To be negotiated
Product Description

G200 3.9688mm-8.5mm bearing chrome steel balls for bearing solid sphere

Chrome steel is one of a class of non stainless steels such as AISI 52100, En31, SUJ2, 100Cr6, 100C6, DIN 5401 which are used for applications such bearings, tools, drills and utensils.

ASIA Type 52100 Chrome Steel Balls are used in the ball and roller bearing industry and for a variety of automobile applications. These Chrome Steel Balls have excellent surface quality. They offer superior wear resistance, high hardness and high load bearing capacity as a result of through-hardening.

Bearing balls are special highly spherical and smooth balls, most commonly used in ball bearings, but also used as components in things like freewheel mechanisms. The balls come in many different grades.



Product Name
G200 3.9688mm-8.5mm bearing chrome steel balls for bearing solid sphere
Material
AISI52100, E52100,SUJ2 ,100Cr6,1.3505,GCr15
Color
Original steel color
Standard
DIN GB ISO JIS BA ANSI
Grade
G200
SIZE
3.9688-8.5mm
Certification
SGS, REACH,CTI, ROHS, ISO9001
Used
Universal for many applications.For example :balls&roller bearings,Linear monition,Balls lead screws,Grinding media;

Specifications


AISI Type 52100 Chrome Steel Balls







SIZE RANGE



0.6mm



GRADES:



3, 5, 10, 25, 50, 100, 500, 1000, 2000











CHEMICAL COMPOSITION







CHROMIUM



1.30% TO 1.60%



CARBON



.98% TO 1.10%



MANGANESE



0.25% TO 0.45%



SILICON



0.15% TO 0.35%



PHOSPHOROUS



0.025% MAX.



SULPHUR



0.025% MAX.











MECHANICAL PROPERTIES







TENSILE STRENGTH



325,000 PSI



YIELD STRENGTH



295,000 PSI



ELONGATION IN TWO INCHES



5%



REDUCTION IN AREA



8%



MODULUS OF ELASTICITY



29,500,000 PSI



DENSITY



.283 LBS./CU.IN.











PHYSICAL CHARACTERISTICS







CORROSION RESISTANCE



NO CORROSION RESISTANCE



MAGNETIC















GENERAL USAGE







QUICK DISCONNECT COUPLINGS, AUTOMOTIVE APPLICATIONS, BALL BEARING & ROLLER BEARING



Material Comparison

Material Comparison

Countries

STD

BEARING STEEL

CARBON STEEL

STAINLESS STEEL

CHINA

YB

GCr15

10

15

45

1Cr18Ni9

0Cr19Ni9

0Cr17Ni12Mo2

3Cr13

9Cr18

USA

AISI

E52100

1010

1015

1045

302

304

316

420

440C

JAPAN

JIS

SUJ2

S9CK

S15CK

S45C

SUS302

SUS304

SUS316

SUS420J2

SUS440C

UK

BS

S135

045M10

090M15

080M46

302 S 25

304 S 15

316 S 16

420 S 45

--

534A99

--

--

060M47

--

-

-

-

--

FRANCE

NF

100C6

XC10

XC12-18

XC42,

XC45

Z10CN18.09

Z6CN18.09

Z6CND17.12

Z30C14

Z100CD17

ITALY

UNI

UNI100C6

C10

C15

--

X15CN1808

--

--

X32C13

--

SWEDEN

SIS

 --

1370

1350

1650

2331

--

--

2304

--

GERMANY

DIN

100Cr6

CK10

CK15

CK45

X12CrNi188 8

X5CrNi189

X5CrNiMn18

X30Cr13

--

1.3505

--

--

--

1.4300

1.4301

10(1.4401)

1.4028

--



A ball bearing is a type of rolling-element bearing that uses balls to maintain the separation between the bearing races.

The purpose of a ball bearing is to reduce rotational friction and support radial and axial loads. It achieves this by using at least three races to contain the balls and transmit the loads through the balls. In most applications, one race is stationary and the other is attached to the rotating assembly (e.g., a hub or shaft). As one of the bearing races rotates it causes the balls to rotate as well. Because the balls are rolling they have a much lower coefficient of friction than if two flat surfaces were sliding against each other.

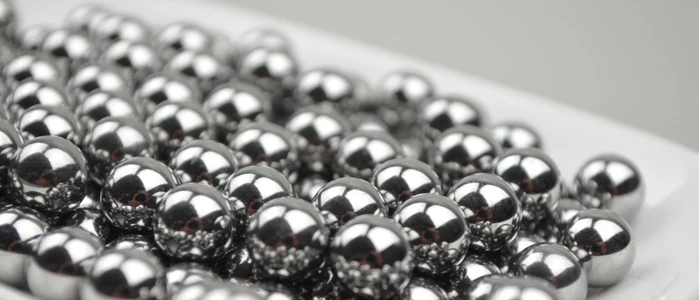

Product Show





good oxidation resistance, high resistance to pitting and crevice corrosion, excellent durability, non-hardenable by heat treatment, solution treatment annealing, excellent weldability, excellent formability, forgeable, excellent toughness, ductile, cold workable, extremely low magnetic properties

Features & Specifications

(1) Raw material traceability.

(2) Steady heat treatment technology.

(3) High precision (good roundness/roughness/hardness).



Company Information





 Our factory production work ship,





Yuncheng Condar Steelball Co., Ltd.

1. Establish in 1998.with 20 years of experience in production and marketing.

2. Possess SGS/ROHS certificate guarantee and a brilliant management team.

3. Advanced production equipment and testing equipment.

4. Fixed Assets more than 10 million RMB.

5. Technical personnel with more than 10 years of production experience.

6. National AAAAA level logistics park as our warehouse, Large stock and fast delivery.

7. 40% domestic market sales volume as foundation.

8. High reputation,Accumulated many customers from all over the world.

We sincerely looking forward to establishing partnership with any customers at anytime.



Packaging & Shipping

1. Carton  packaging                               2. Carton+pallet                                       3. Woven bag

4. woven bag+drum                                 5. Bottled + carton + tray                           6. FIBC

Packing Details  :Carton packaging, woven bag, carton + tray, drum, or according to customer requirements packaging

Delivery Details : 3-5 days after order ,According to the order quantity;

Custormer Visiting

Why Choose Us?



1. As a manufacturer and trading company, we are able to get the best resources integrated in China and offer our clients qualified parts at the most competitive price.


2. Quality Assurance: 100% QC inspection before delivery; ISO9001:2008, and SGS certified; Full refund or replacement for quality faulty; 90 days quality warranty for ALL products.

3. Excellent customer service, responded within 24 hours.

4. Fast delivery: we have large amount of stock ready to ship the next day after order, and for bulk production, we can work on urgent order and deliver in time.

5. We provide OEM service and can make custom parts according to clients’ prints or sample pieces.

6. With more than10 year’s experience, we’ve worked with customers worldwide


7.
One-Stop service: we can take care of everything from production, shipping, import clearance, door delivery until your order is right there in your hands.

Contact Us

                                 Thanks for your time!

              Any concerns please contact me freely!
